66kVBolted-type Separable Connector

: 产品描述
Bolted-type separable connectors, also known as T-type cable plugs or plug-in connectors, are designed with a plug-in structure and are suitable for power systems with a maximum voltage of 40.5kV and below, for example, power supply GIS between wind turbines, or wind turbine and substation/ connection stations, transformers, HV motors, generators, ring main units and box-type transformers, and are completely insulated, sealed and shielded products.

产品型号/使用范围
Product model: DH-SYLJ 38/66
Interface sizes: EN 50181 and EN50673 interface standard - F-type interface sleeves
Scope of Use: It is applicable to cables rated 38/66kV, cable XLPE or (EPR) insulation, with nominal cross-section of conductor ranging 50~1600mm2.

产品特点
1、The terminal is of dry structure, in compact size, dry section, no need to fill insulating oil or gas inside.
2、The cable terminals can be connected to the equipment horizontally, vertically or at any angle, without being interfered in by the cable and the equipment.
3、Scalable cables or lightning protector is available for multi-cable connection or limiting over-voltage protection.

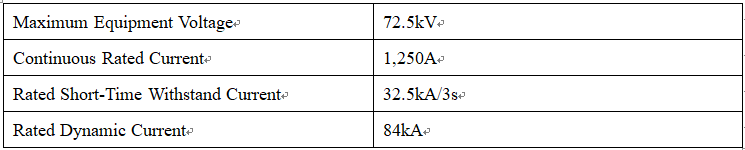

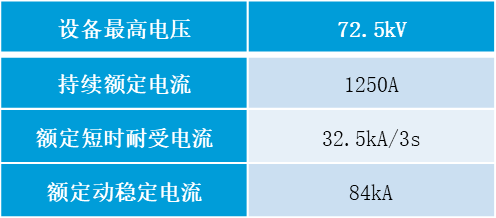

技术参数
