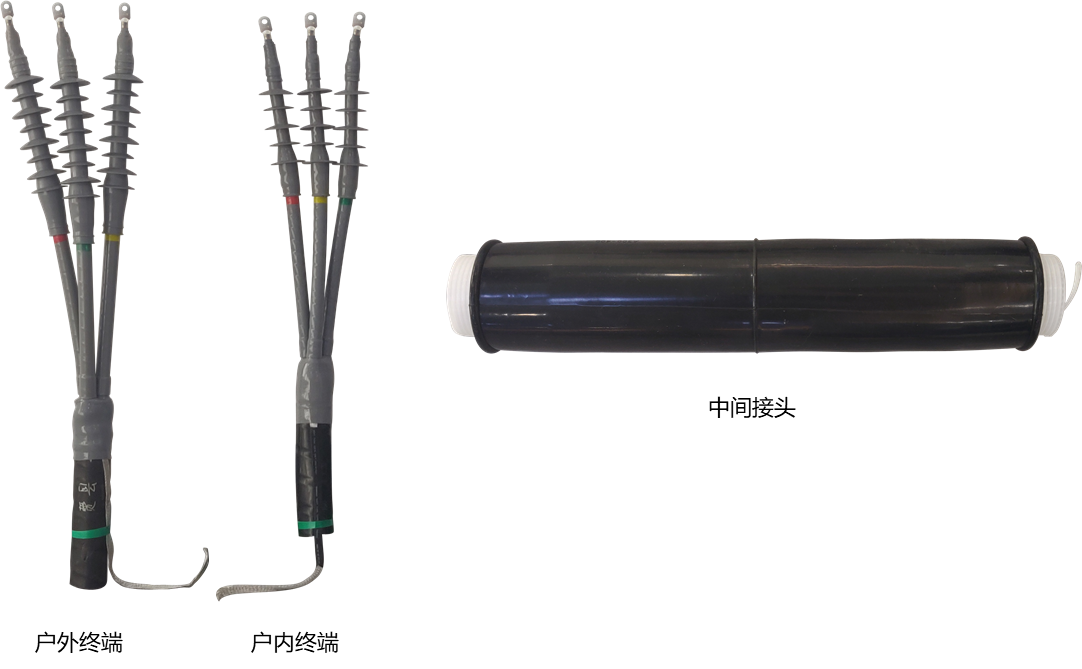

Product model: Cold shrinkable outdoor terminal DH-WLS

Scope of Use: It is applicable to cables rated 26/35kV, with external insulation contamination of Class E, cable XLPE or  (EPR) insulation, with nominal cross-section of conductor ranging 50~630mm2.

1、The terminal is of an integrated structure, and can be quickly installed and used for a variety of cables.

2、The silicone rubber material with an improved formula has a hydrophobic terminal surface. When it is exposed to rain or moisture, water droplets on the surface are prone to slide off. The material has good resistance to aging and dirt, and remains hydrophobic even when the surface is contaminated.

3、The alternating umbrella skirt design prevents rainwater from forming creepage channels from the skirt end to the skirt end, meeting the use for Class-E contaminated zone, especially suitable for use in extreme environments, for example, offshore wind farms with salt spray and humidity.
